Oddie Spring Loaded Self Centering Assembly

1000 series - 10 mm Stud Diameter

Features

1000 series - Surface Mounted Types

Material Head Style Finish Part Number
Zinc Alloy 3mm Wide Slot Black Powder Coat 450221
Zinc Alloy Concave Wing Black Powder Coat 450213
Zinc Alloy 8mm Square Key Zinc & Passivated 450171
450221 450213 450171
3mm wide slot
Concave Wing
8mm Square Key

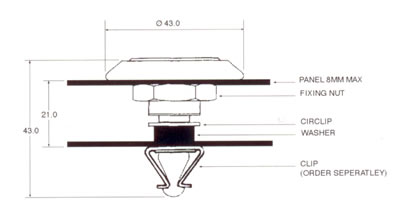

 450221 Drawing
450221 Drawing

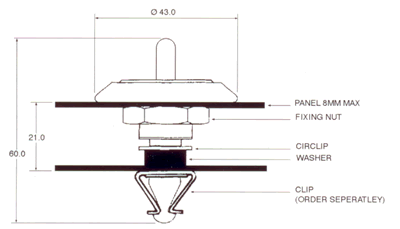

 450213 Drawing
450213 Drawing

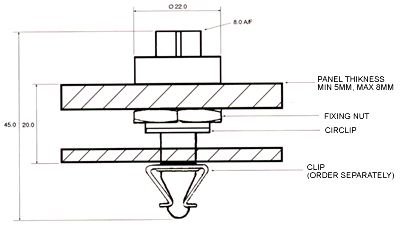

 450171 Drawing
450171 Drawing
 450221 / 450213 Panel Preparation Drawing
 450171 Panel Preparation Drawing
450221 / 450213 panel preparation 450171 panel preparation

For 1000 series receptacle clips click here.

Back to Top

1000 series - Recess Mounted Types

Material Head Style Finish Part Number
Zinc Alloy 3mm Wide Slot Black Powder Coat 450174
Zinc Alloy Concave Wing Black Powder Coat 450178
Zinc Alloy Convex Wing Black Powder Coat 450170
450174 450178 450170
3mm wide slot
Concave Wing
Convex Wing

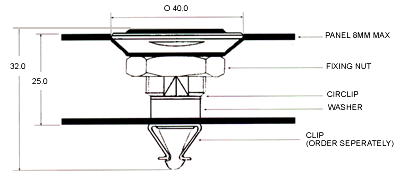

 450174 Drawing
450174 Drawing
 450178 Drawing
450178 Drawing
 450221 Drawing

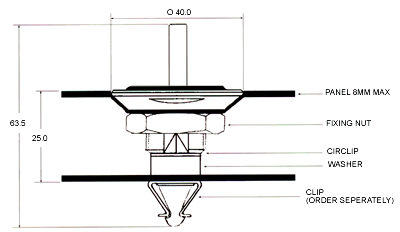

450170 Drawing
 450174 / 450178 / 450170 panel preparation
450174 / 450178 / 450170 panel preparation

For 1000 series receptacle clips click here.

Back to Top

600 series - 6mm Stud Diameter

Features

600 series - Recess Mounted Types

Material Head Style Finish Part Number
Zinc Alloy with Steel Stud 2mm Wide Slot Black Powder Coat 450154
Zinc Alloy with Steel Stud Wing Black Powder Coat 450144
450154 450144
2mm wide slot
Wing

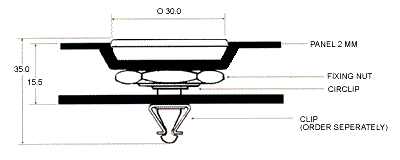

 450154 drawing
450154 drawing

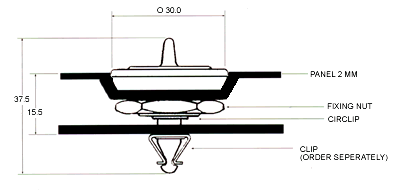

 450144 drawing
450144 drawing
 Panel Preparation
panel preparation

For 600 series receptacle clips click here.

Back to Top
