Plastic Quarter Turn Fastener

Plastic Quarter Turn

A one piece plastic 1/4 turn fastener.

Plastic Quarter Turn Drawing

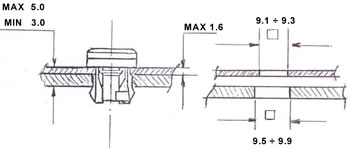

Plastic quarter turn drawing

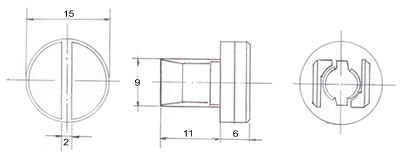

Plastic quarter turn drawing
Snap the anchor into a square hole on the panel
press the two panels (a and b) together
1/4 turn the head to secure both panels
Snap the anchor into a square hole on the panel Press the two panels (“a“ and “b“) together 1/4 turn the head to secure both panels

Part Number: 600067.
