Oddie Quarter Turn Fastener Lock

Oddie Locks

A seven pin radial tumbler lock with an Oddie Fastener 1000 Series Stud end enabling the lock to be slammed shut without the need to use a key - click here for further details on the oddie 1000 series.

The key only withdraws in the locked position.

Can be used with any 1000 series receptacle clips - click here to see receptacle clips.

For clip-in-clip fixing size - click here

The Grip Length of the lock is a standard size of 28mm (this is the distance between under the head of the lock to underside of the material that the clip is fixed to)

Part Number : 393710 - Locks Keyed Alike

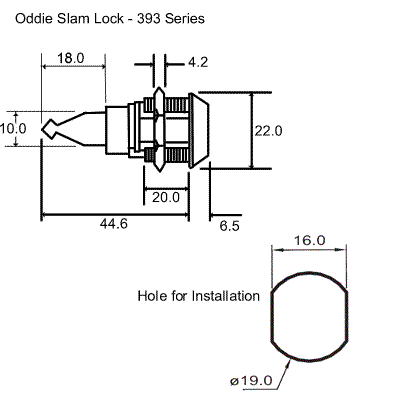

Oddie Lock
393 Series Oddie Locks

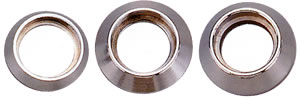

Security Collars

Security Collars

The 394 Security Collars fit all 19mm standard housings with two flats and feature:

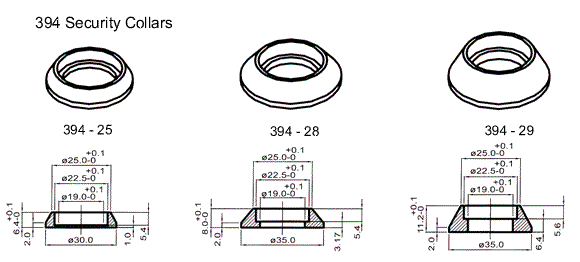

394 Series Security Collars
394 Series Security Collars
Part No: Descriptions Out Dia. In. Dia. Projection H.Overall H
394-21 Spur Washer 28.575 19.05 2flat 1.19 1.19
394-22 Flat Washer 26.9875 19.05 2flat 1.19 1.19
394-24 Tension Washer 22.225 19.05 .39 3.175
394-25 Security Washer 30.1625 19.05 1.5875 6.35
394-28 Security Washer 34.925 19.05 1.5875 7.9375
394-29 Security Washer 34.925 19.05 4.7625 11.1125

Contact

Savigny Oddie Limited
Wallows Industrial Estate,
Wallows Road,
Brierley Hill,
West Midlands
DY5 1QA UK

Tel: +44 (0) 1384 481598
Fax: +44 (0) 1384 482383
Email: info@savigny-oddie.com

Company Reg: 5319024
VAT Reg: 850 1983 24

About Oddie Fasteners

"Oddie®" is the registered trade mark of Savigny Oddie Limited and they are manufactured and marketed in the UK only by Savigny Oddie Limited.

"An open & shut case for a specialised fastener"

The oddie fastener is a quick release, quarter turn, fastening for securing panels or components that have to be speedily and easily removed for servicing or replacement - whether once a day, or once a year.

In its simplest form it consist of a stud, held in a removable panel by a retainer, and a spring steel clip permanently mounted to the framework of the equipment.

A quarter turn of the stud opens the fastener, and to lock it again the stud is pushed home into the clip.
