Steel Push Pull Fasteners

Push Pull Oddie

A range of case hardened zinc plated steel studs with rivet-on or clip-in spring steel clips in a phosphate finish. Dacromet finish can be supplied on the clips for applications requiring greater surface protection.

Clip in clips are front mounted into a round hole making them particularly suitable for blind hole fixing in square tubes.

Stud

Stud

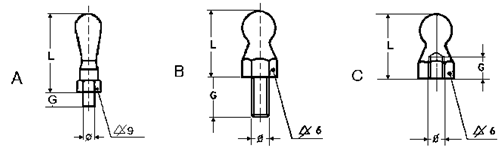

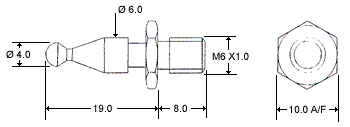

Push Pull Stud Drawing

Note: Type C to special order - please specify

Thread Type L G Part Number
4.2 self tapping 11.4 8 600079
M4 B 11.4 10 600080
M5 B 11.4 10 600081
M5 B 12.0 5 600082
M4 B 12.4 7 600083
M5 B 14.0 4 600084
M5 B 14.0 7 600085
M4 B 12.7 600086
M5 B 12.0 10 600087
M5 B 12.7 4 600088
M5 B 12.7 10 600089
M4 B 14.0 10 600090
M5 B 14.0 10 600091
M6 A 25.0 10 600092

Clip In Clips

Clip In Clips

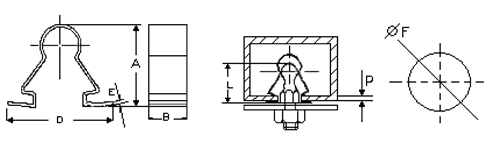

Clip In Clips Drawing
L Panel Thickness P A B D E F Part Number
11.4 0.5 - 1.0 13.4 6.0 17 0.4 10.5 600068
12.0 1.0 - 1.5 13.8 6.0 17 0.4 10.5 600069
12.7 1.5 - 2.0 14.2 6.0 17 0.4 10.5 600070
12.7 1.7 - 2.5 14.2 6.0 17 0.4 10.5 600071
14.0 2.5 - 3.2 15.8 6.0 17 0.4 10.5 600072
12.7 1.7 - 2.5 14.6 6.0 25 0.4 10.5 600073

Rivet-on Clips

Rivet On Clips

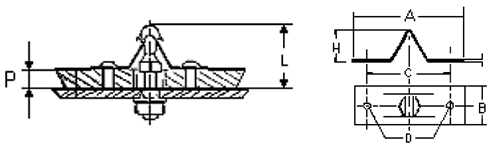

Rivet On Clips Drawing
Panel Thickness P A B C D E H L Unlocking Force daN Part Number
1.5 - 5.0 50 17 37 8 0.6 16.5 25 8 600074
1.5 - 5.0 50 17 37 3.2 0.6  16.5 25 8 600096
3.5 - 5.0 26 11 19.5 8 0.6 7.5 14 9 600076
2.0 - 3.5 26 11 19.5 8 0.5 7.5 14 6 600077
1.0 - 2.0 26 11 19.5 8 0.3 7.5 14 3 600078

Contact

Savigny Oddie Limited
Wallows Industrial Estate,
Wallows Road,
Brierley Hill,
West Midlands
DY5 1QA UK

Tel: +44 (0) 1384 481598
Fax: +44 (0) 1384 482383
Email: info@savigny-oddie.com

Company Reg: 5319024
VAT Reg: 850 1983 24

About Oddie Fasteners

"Oddie®" is the registered trade mark of Savigny Oddie Limited and they are manufactured and marketed in the UK only by Savigny Oddie Limited.

"An open & shut case for a specialised fastener"

The oddie fastener is a quick release, quarter turn, fastening for securing panels or components that have to be speedily and easily removed for servicing or replacement - whether once a day, or once a year.

In its simplest form it consist of a stud, held in a removable panel by a retainer, and a spring steel clip permanently mounted to the framework of the equipment.

A quarter turn of the stud opens the fastener, and to lock it again the stud is pushed home into the clip.
